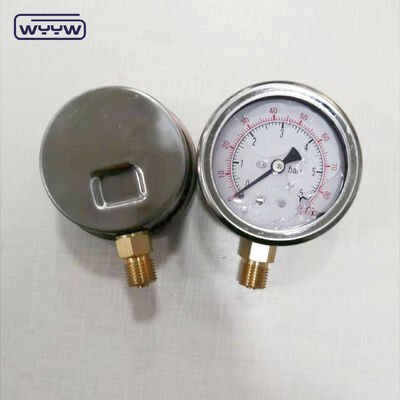

63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range

200 unidades
MOQ
Depends on total quantity
preço
63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
suporte personalizado: OEM, ODM, OBM
Material: Caixa de aço inoxidável
Lugar original: FEITO NA CHINA
Tamanho de discagem: 63 mm
Faixa de pressão: Fabricado conforme os requisitos, Mpa, bar, psi, kg, etc.
Montar: Fundo
Precisão: 2,5%
Garantia: 1 ano
Porta: Qingdao, Shanghai, Tianjin, Ningbo
Vantagens: À prova de umidade, resistente ao desgaste, ecológico, altamente durável
Informação básica
Lugar de origem: Qingdao, China
Marca: WYYW
Certificação: CE & ISO9001
Número do modelo: YTN-63
Condições de Pagamento e Envio
Detalhes da embalagem: Saco plástico interno, caixa de exportação para fora. Palete opcional.
Tempo de entrega: 5-30 dias
Termos de pagamento: TT,LC.Alipay.Western Union
Habilidade da fonte: 30-50k pelo mês
Descrição de produto
Chinse Factory 63mm Oil Filled Mud Pump Pressure Gauge
mud pump pressure gauge
63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 0
Product Description
63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 1
Name Oil filled pressure gauge
Dials Size 40/50/63/100/150mm (or custom size available)
Case Stainless steel case
Pressure Mpa, other scale units bar, psi, kg/cm2 etc. optional
Ring None
Movement Brass
Socket Brass
Bourdon tube Bronze
Dial plate and pointer Aluminum
Window Acrylic / Plastic
Connection sizes 1/8" for 1.5", 1/4 for 2",2.5" case; 1/2 for 4",6"
Connection threads Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting Bottom/Back and panel
Accuracy 1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%
Pressure limitation Steady: 3/4x full scale value
Fluctuation: 2/3x full scale value
Short time: full scale value
63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 2 63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 3 63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 4
Product Application
  • Outdoor and severe ambient and process conditions
  • Use where harmful vibration and pulsation are present
  • Hydraulic equipment, pressure washers, oil field equipment, pumps, compressors and process systems
63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 5
Company Information
Qingdao DaZeFengYang is one professional pressure gauge and hardware tools manufacturer, who is also one member of China National Hardware Association.
Together with our highly skilled technical experts, we have put an effort to meet the quality of pressure gauge as per GB/T (Chinese Standard) & International Standards requirements, and have already got ISO9001, CE certificate for all our products, including: pressure gauge, gas regulator, cutting torch and welding torch etc.
Over the passed years development, there is now an impressive selection of products, both special and standard, with keen prices and deliveries, which together with the speedy sales and after sales service make our company attractive to customers all around the world, especially for those distributors and importers from Europe, Southeast Asia, Middle East, America and Australia.
Welcome every friend to call, email us and visit our company. We sincerely hope to create wonderful future together with you.
63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 6 63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 7 63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 8
Packaging & Shipping
63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 9
Advantages
  • Advance Equipment and Professional Technology: We are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.
  • Best After-sales Service: Our company provide best after-sale service all the time, for our goal is a long trade cooperation term.
  • Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection, we also have passed ISO9001 and UL certificated.
  • Quickly Delivery: Our company provides in-time delivery, always satisfy customers needs.
  • Convenient Purchase and save cost: We are skillful manufacturer, so it's convenient for you to purchase. We can provide our high quality products with reasonable price.
  • OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market.
